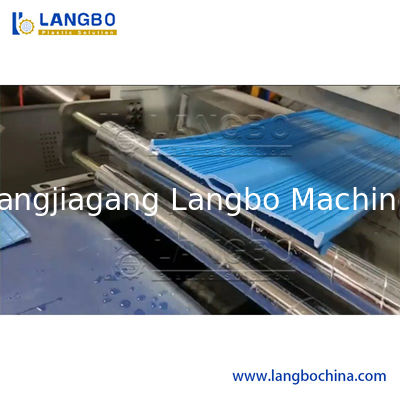

Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine
Chi tiết sản phẩm
| Loại đùn: | 55/110 Máy đùn t đôi hình nón | Kích thước hồ sơ: | 1180mm |
|---|---|---|---|
| Công suất động cơ: | 22kw | Nguyên liệu thô: | PVC bột & phụ gia |
| Haul-Offs: | Hai bài hát độc lập | Bảng hiệu chuẩn: | Dài tám mters |
| Phương pháp đóng gói: | Gói hộp gỗ và phim | Kích thước hồ sơ: | Theo bản vẽ của khách hàng |
| Thời gian giao hàng: | Trong vòng 90 ngày | ||
| Làm nổi bật |
PVC water stopper extrusion line,PVC water stop making machine,PVC profile extrusion production line |
||
Mô tả sản phẩm
Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine
Product Description
The PVC profile production line is widely used for producing various PVC profiles, such as PVC window&door profile, PVC ceiling panel, PVC trunking. With drawing sections of the PVC profile, tailed solutions and mould will be made.
Processing Process
The process flow of this line is PVC powder + additive — mixing—material feeder—twin screw extruder— mould and calibrator—vacuum forming table—haul-off machine—cutting machine—discharge rack.
This PVC profile extrusion line adopts conical twin screw extruder, which is suitable for both PVC powder and PVC granules. It has degassing system to ensure the excellent material plasticization. The high speed mould is available, and it can largely increase the productivity.
Specifications
| Model | LB180 | LB240 | LB300 | LB600 |
| Max width of products(mm) | 180 | 240 | 300 | 600 |
| Screw Model | SJ55/110 | SJ65/132 | SJ65/132 | SJ80/156 |
| Motor power | 22KW | 37KW | 37KW | 55KW |
| Cooling Water(m3/h) | 5 | 7 | 7 | 10 |
| Compressor(m3/h) | 0.2 | 0.3 | 0.3 | 0.4 |
| Total length(m) | 18m | 22m | 22m | 25m |
Product detail
Conical Twin Screw Extruder
The screws are specifically designed and manufactured for the processing of dry pvc powder blend. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency. The permanent magnet synchronous motor provide high energy efficiency for the extruder. Equipped with PLC control system, it realized controlling the whole production line in the one site.

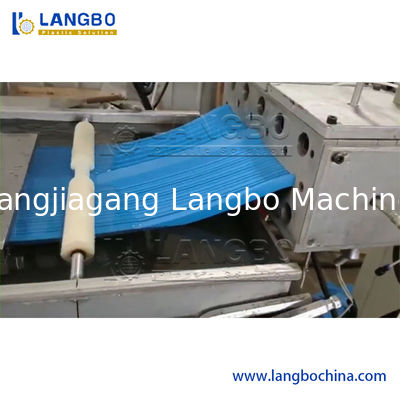

Plate Mould
We offer double Strand mould for the PVC trunking production line. By this way, the productivity will be highly improved. The optimized channel design ensures high flow performance. The advanced plate mould produced the profile with high precision.

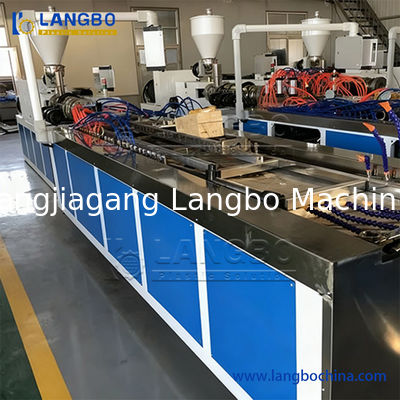

Calibration table
The calibration table has stable steel frame and the whole body material is SUS 304 stainless steel. We have multi-dimension position adjustment system. With precious layout of water pumps and vacuum calibrator, the PVC profile will be rapidly shaping and cooling. Enough length of the calibration table ensures the shaping of the PVC profile
Haul-off & Cutter Combination
The force distribution along each s has sufficient hauling force. We offer good-quality rubber for the haul-off machine. The pneumatic pressure is conducive to the easy adjustment and product protection. Two kinds of cutting way including swarfless and saw cutting are available for customization.
Điểm nổi bật của sản phẩm
Plastic PVC Water Stopper Profile Extrusion Production Line/PVC Water Stop Making Machine Product Description The PVC profile production line is widely used for producing various PVC profiles, such as PVC window&door profile, PVC ceiling panel, PVC trunking. With drawing sections of the PVC profile, ...
